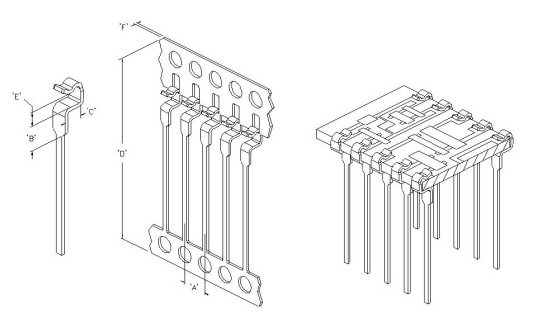

DIL (Dual In Line) Clip Design and Series Numbers

DIL (Dual In Line) Clip Design and Series Numbers

Series Pitch (A) Stand Off (B) Drop (C) Stripwidth (D) Substrate Sizes (E) Material Thickness (F)

BA3000 2.54mm 1.27 to 3.30mm 1.63mm 21.70mm 0.62 to 1.34mm 0.25mm

BA3015 2.54mm 1.27 to 3.30mm 1.40mm 21.70mm 0.62 to 1.34mm 0.25mm

BA3030 2.54mm 1.27 to 5.00mm 1.20mm 21.70mm 0.62 to 1.34mm 0.25mm

BA3100 Discontinued - - - - - -

BA3200 2.54mm 0.61 to 1.27mm 1.63mm 21.70mm 0.62 to 1.08mm 0.25mm

BA3206 2.54mm 1.27mm 1.40mm 21.70mm 0.62 to 0.70mm 0.25mm

BA3315 2.54mm 1.55mm 1.40mm 18.10mm 0.62 to 1.00mm 0.25mm

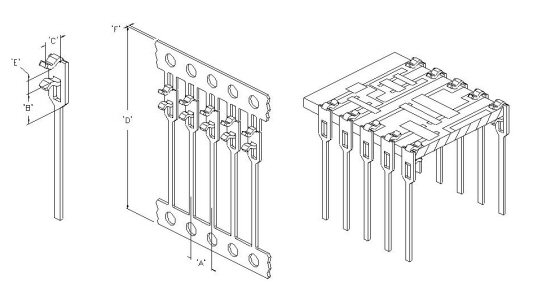

DIL (Dual In Line) Clip Design and Series Numbers

Series Pitch (A) Stand Off (B) Clip Length (C) Stripwidth (D) Substrate Sizes (E) Material Thickness (F)

BA3500 2.54mm 2.00mm 1.25mm 18.10mm 0.62 to 1.32mm 0.25mm

BA3510 2.54mm NIL 1.25mm 18.10mm 0.62 to 1.32mm 0.25mm

BA3540 2.54mm 2.00mm 1.25mm 18.10mm 0.62 to 0.70mm 0.25mm

BA3600 Discontinued - - - - - -

BA3610 2.54mm 5.00mm 1.45mm 18.10mm 0.62 to 1.08mm 0.25mm

BA3700 2.54mm 2.00mm 1.35mm 22.86mm 0.58 to 3.10mm 0.25mm

BA3760 2.54mm 2.00mm 1.35mm 22.86mm 1.52 to 1.65mm 0.25mm

BA6600 1.27mm 2.00mm 1.05mm 18.10mm 0.62 to 1.08mm 0.25mm
