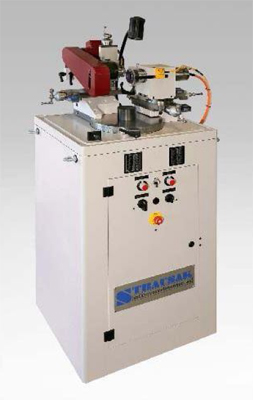

BURNISHING DISC LAPPING MACHINE S 80
瑞士STRAUSAK公司生产的S 80型轴颈磨轮拉削面修磨机床

APPLICATION
机床的应用

The burnishing disc re-lapping machine S 80 has been designed to re-lap burnishing
discs which are used on the ST 119 and the ST 70 machines.
该机是专门针对ST119和ST70型轴颈磨床磨轮拉削面进行修磨的专用配套设备。

MACHINE AND TECHNICAL DATA
主机和技术参数

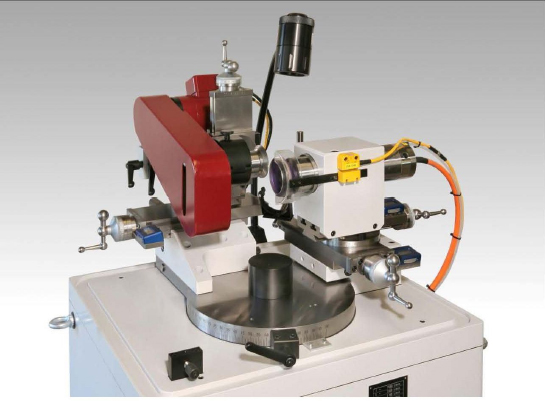

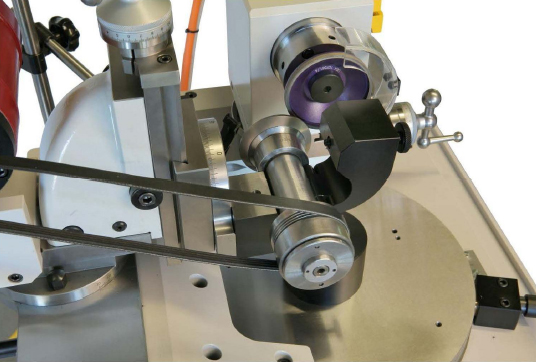

The machine has a turn-table, which can be swung through 90° or 110°, the lapping
spindle and the disc drive spindle speeds can be steplessly adjusted. The burnishing
disc quill is driven by a multi-vee belt, whereas the lapping spindle is driven by a
motor-spindle. With the turntable and slide movement combination, a radius can be
generated instead of a sharp edge between the diameter and shoulder lapping faces
on the burnishing disc.
该机有一个可以翻转90°至110°的回转工作台,拉削修磨轴和磨轮的驱动转数均
可实现无级调速。磨轮是被一条多槽皮带驱动,而修磨砂轮轴是被电机直驱的。由
于回转工作台和导轨的组合运动,可以在磨轮的拉削表面修磨出理想的弧形或是直
线型拉削射线纹。



TECHNICAL DATA
机床的技术参数如下:

Lapping Spindle Speed
磨轴主轴转数
rpm 1‘500 – 9‘000
Burnishing disc Spindle Speed
磨轮轴被驱动转数
rpm 300 – 1‘200
Turntable Range
回转工作台旋转范围
90° (110°)
Displacement of the Slides
磨轮托板导轨行程
mm 60
Weight 机床重量 kg 250
Footprint 机床占地面积 mm 900 x 700
