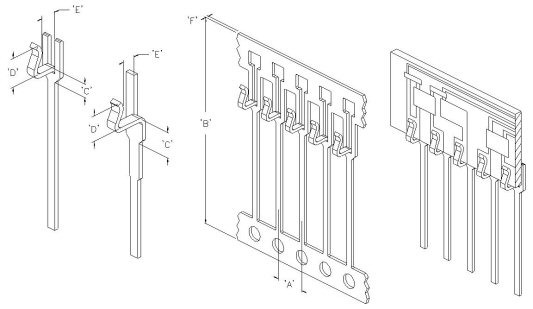

SIL (Single In Line) Clip Design and Series Numbers
| Series |
Pitch (A) |
Stripwidth (B) |
Stand Off (C) |
Clip Length (D) |
Substrate Sizes (E) |
Material Thickness
(F) |
| BA1500 |
3.81mm |
14.10-17.27mm |
1.38mm |
2.40mm |
1.50 to 1.65mm |
0.50mm |
| BA4004 Discontinued |
- |
- |
- |
- |
- |
- |
| BA4100 |
2.54mm |
18.10mm |
1.00mm |
1.75mm |
0.58 to 1.40mm |
0.25mm |
| BA4106 |
2.54mm |
18.10mm |
0.80mm |
1.75mm |
0.58 to 1.40mm |
0.25mm |
| BA4120 |
2.54mm |
18.10mm |
1.00mm |
1.75mm |
0.58 to 1.15mm |
0.35mm |
| BA4300 |
2.54mm |
18.10mm |
1.70mm |
1.75mm |
0.58 to 1.65mm |
0.25mm |
| BA4400 |
2.54mm |
18.10mm |
1.50mm |
1.75mm |
0.58 to 1.15mm |
0.25mm |
| BA4500 |
2.54mm |
18.10mm |
1.00mm |
1.75mm |
0.58 to 1.40mm |
0.25mm |
| BA4600 |
2.54mm |
18.10mm |
0.80mm |
1.75mm |
0.58 to 1.40mm |
0.25mm |
| BA4610 |
2.54mm |
18.10mm |
0.80mm |
1.75mm |
0.58 to 1.15mm |
0.25mm |
| BA4900 |
2.54mm |
18.10mm |
0.80mm |
1.75mm |
1.00 to 2.59mm |
0.35mm |
| BA5200 |
2.54mm |
15.30mm |
1.70mm |
1.55mm |
0.62 to 1.55mm |
0.25mm |
| BA6200 |
1.27mm |
18.10mm |
1.00mm |
1.53mm |
0.58 to 1.15mm |
0.25mm |
| BA7000 |
2.54mm |
13.86mm |
1.00mm |
1.50mm |
0.62 to 0.70mm |
0.25mm |
| BA7200 |
1.90mm |
18.10mm |
1.00mm |
1.75mm |
0.62 to 1.08mm |
0.25mm |
| BA7210 |
1.90mm |
15.4mm |
1.00mm |
1.75mm |
0.62 to 1.08mm |
0.25mm |
| BA9000 |
2.54mm |
18.10mm |
Nil |
1.75mm |
0.62 to 1.08mm |
0.25mm |
| BA9010 |
2.54mm |
18.10mm |
Nil |
1.40mm |
1.00 to 1.08mm |
0.25mm |
| BA9200 |
2.54mm |
18.10mm |
Nil |
1.25mm |
0.62 to 0.70mm |
0.25mm |
|
|
|
